Single-Platform High-Efficiency Laser Sheet Cutting Machine

Brand: CQX Laser
Model: LF-S Series
Catalog: Sheet metal cutting machine
Warranty: 3 Years
Delivery time: 7 working days
Payment: Alibaba trade assurance, T/T, Western union, L/C

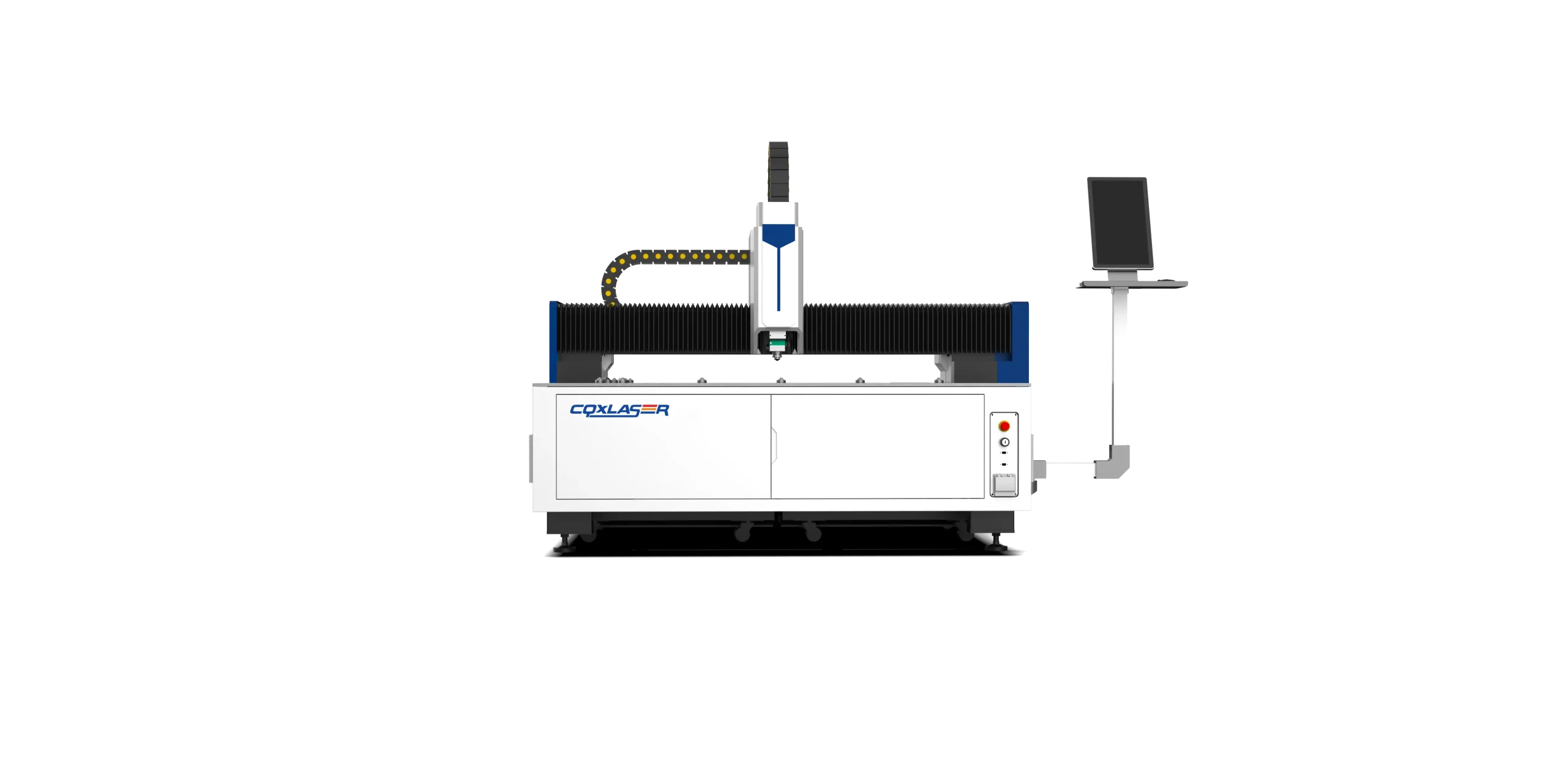

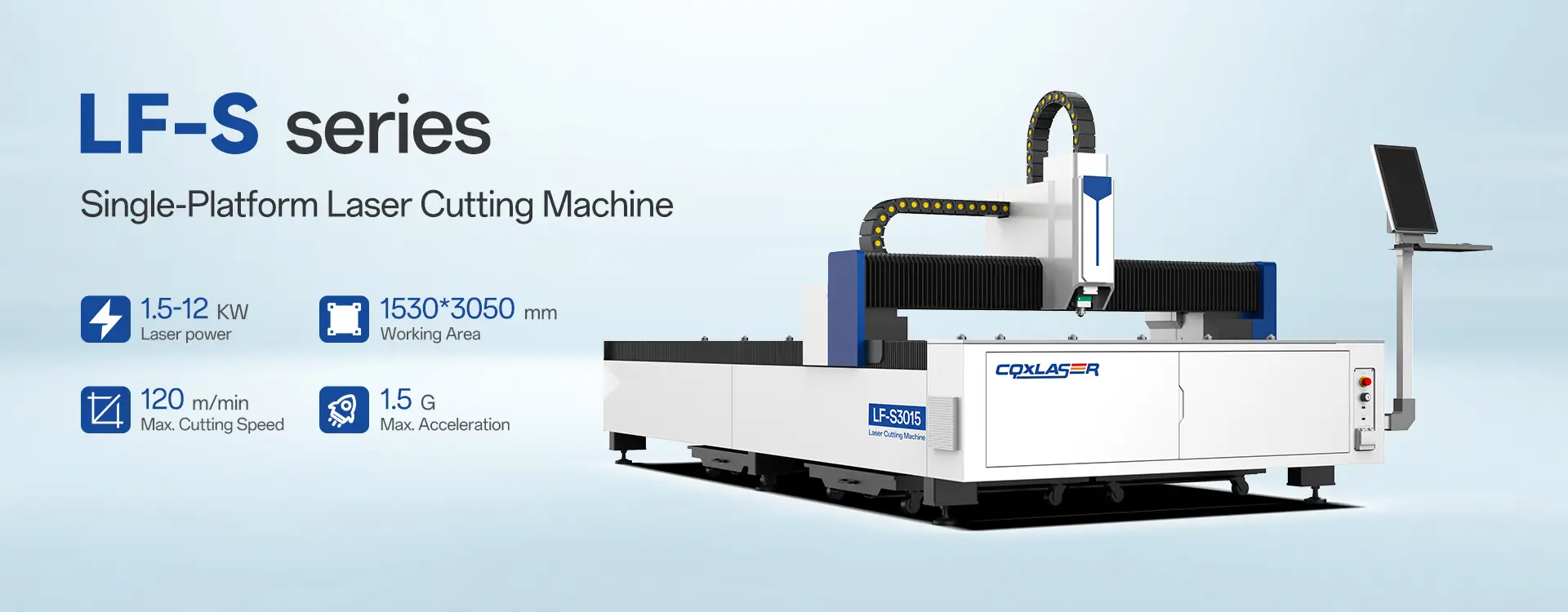

LF-S3015 Series

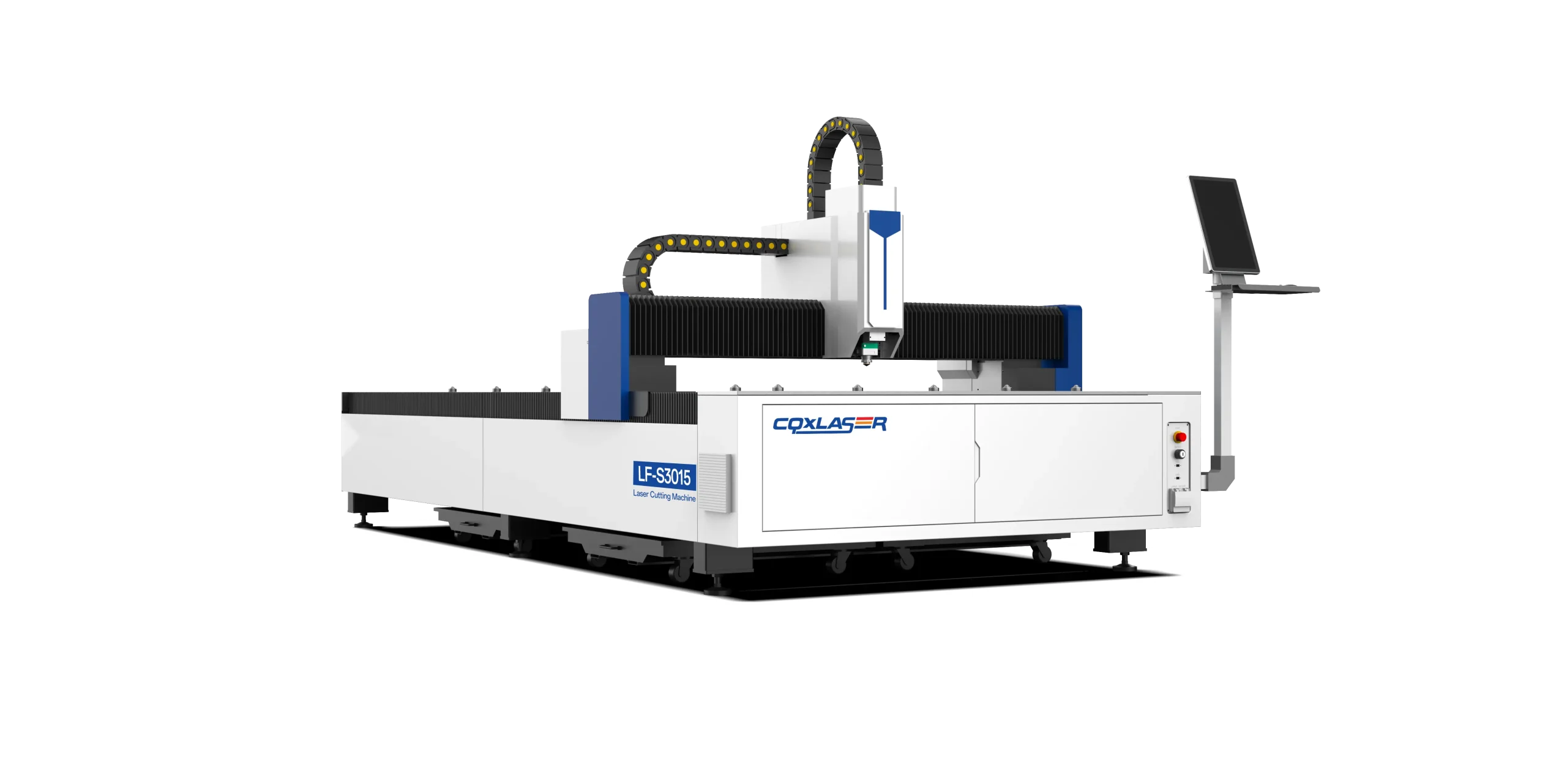

The LF-S3015 Single-Platform Laser Cutting Machine features a compact footprint, an open-structure design, and high-speed cutting capabilities. It is ideally suited for the efficient and precision processing of various metal sheets.

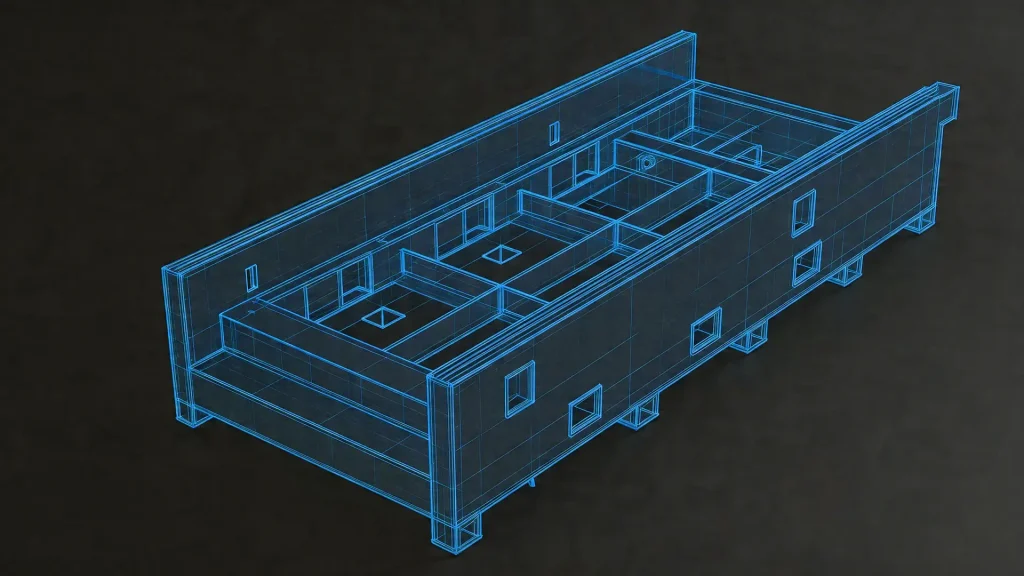

Heavy-duty welded bed frame

The machine bed is constructed from high-quality steel plates and tubes, joined together through welding. Furthermore, the bed undergoes a rigorous multi-stage process—including high-temperature annealing and secondary aging treatment—to ensure exceptional structural stability and vibration resistance. Even after prolonged, continuous operation, the bed remains free from deformation, thereby extending the overall service life of the entire equipment system.

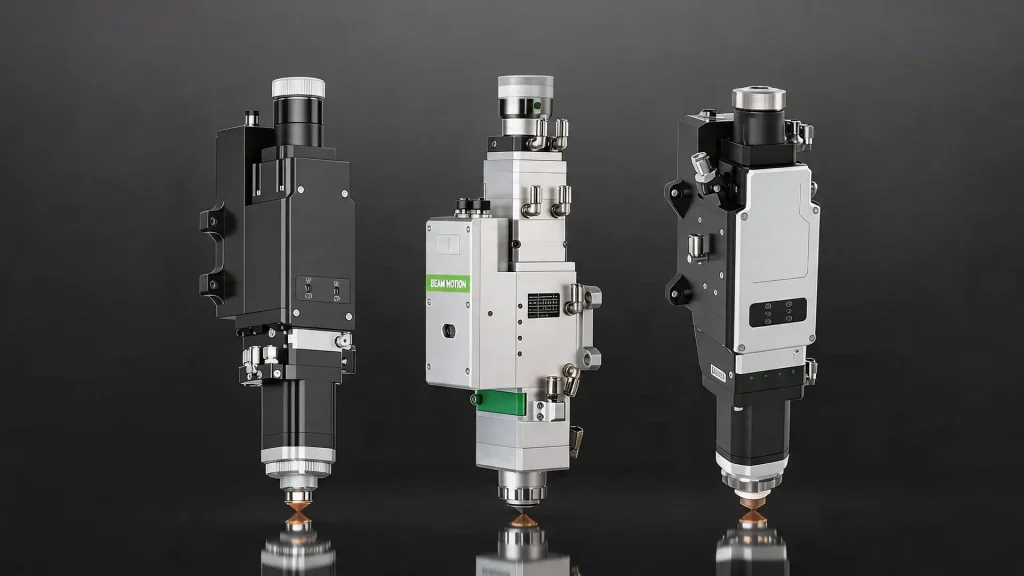

Laser Cutting head

Multiple Protection:3 protective lenses , highly effective collimating focus lens protection.2-way optical water cooling extends the continuous working time effectively.

High-Precision:To successfully avoid step loss,a closed-loop stepping motor is used.The repetition accuracy is 1M and the focusing speed is 100mm/s. Dust-proof to lP65,with a patent-protected mirror cover plate and no dead angle.

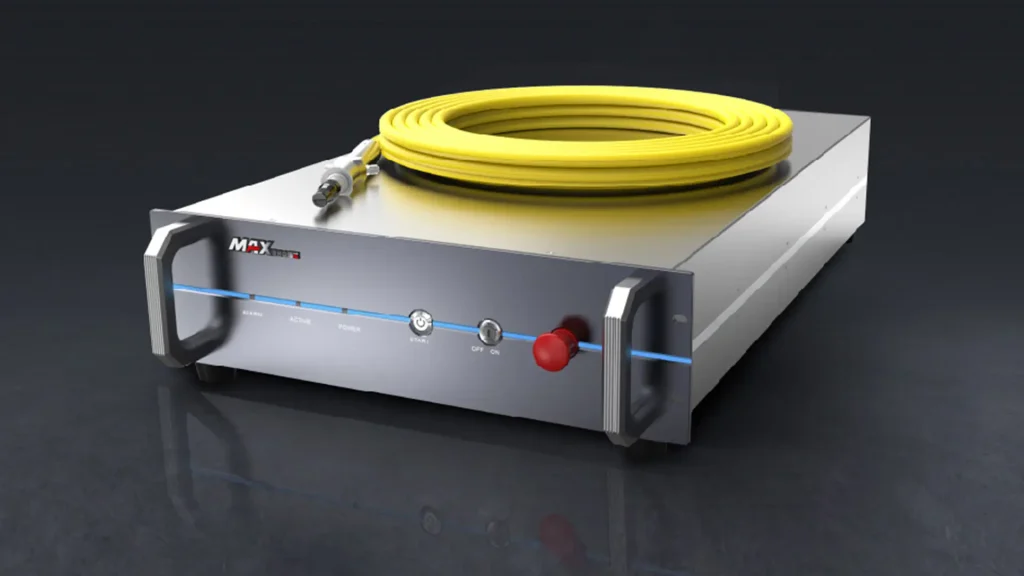

Laser Generator

The laser generator (Raycus, Max, IPG) is the core component of a fiber laser cutting machine, providing stable and high-power laser output. Known for efficiency, reliability, and long lifespan, these generators ensure precise cutting with excellent beam quality. They support various power levels, enhancing cutting speed and material versatility.

Model	LF-S3015	LF-S4020	LF-S6025
Working Area	3050*1530mm	4050*2030mm	6150*2530mm
Laser Power	1.5-20kw	1.5-20kw	1.5-20kw
Positioning Accuracy	士0.05mm/m	士0.05mm/m	士0.05mm/m
Max. Speed	115m/min	115m/min	115m/min
Max. Acceleration	0.8G	0.8G	0.8G
Cutting accuracy/mm	≤0.1mm
Working Voltage	380V，three-phase /50Hz-60Hz
Supported image formats	LXD/.DXF/.PLT/.AI/.Gerber/.DWG

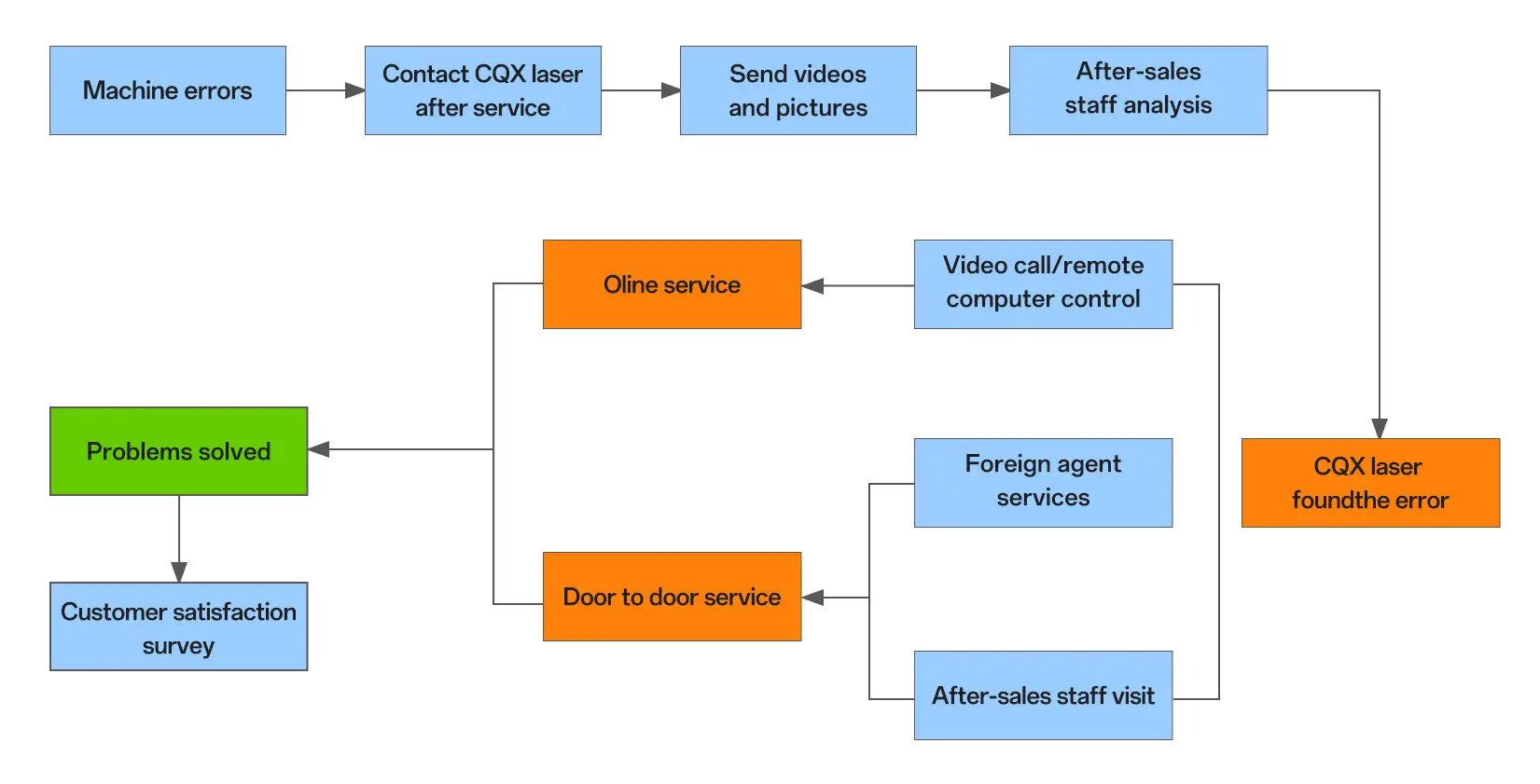

After-Sales Service Process

FAQ

What Certifications Does This Machine Have?

Our laser-cutting machine is certified with internationally recognized standards to ensure quality, safety, and compliance with industry requirements.

CE Certification: The CE mark is a mandatory certification for products sold within the European Economic Area (EEA). This certification confirms that our laser-cutting machine meets the health, safety, and environmental protection standards required by the EEA. It ensures that the machine is built and tested in compliance with European regulations, providing users with a high level of safety and reliability.
FDA Certification: For the U.S. market, our machine has FDA certification, verifying that it meets the standards set by the Food and Drug Administration for laser-emitting devices. This certification ensures the machine complies with laser safety regulations, providing users with peace of mind that the machine is safe to operate and meets the strict requirements set for laser equipment in the U.S.
If additional certifications are required for specific regions or industries, please let us know, and we can provide further information.

How To Install, Use And After-Sales?

1.We provide free training in our factory.

2.We provide free online after-sales service.

3.We have complete installation instructions and video tutorials.

4.Door-to-door service charges are based on region and aircraft model.

5.Provide three-year warranty, except for consumable parts, direct replacement for non-human damage.

What Is The Price of This Machine?

The price of the CQX laser cutting machine ranges from $30,000 to $180,000, depending on the laser power, working area, and standard configuration. If you require additional customization, the price may change accordingly.

For an exact price quote and shipping cost, please contact us with your specific requirements, including machine configuration and delivery destination.
